iOS UI Alerts

  Total Views : 65
  Comments : 0

  Keywords : iOS alert in swift with example, How to use uialertview reference for alert in swift application with example, iOS ui alert example in swift using xcode, iOS show alert in swift application

Here we will learn iOS ui alerts in swift with example and how to use ios alerts in swift to convey important information with example using Xcode.

iOS UI Alerts

In iOS alerts are used to alert or inform the user with important information regarding the action which he is doing to proceed further in app. Generally, iOS uses alerts to inform the user while phone battery running low, so they can connect power adapter to charge the phone before their work gets interrupted.



In iOS applications alert view will appear on the top of app content so user must close manually before they start using the app.



ios ui alert view in swift example



The iOS alert will contain alert title, optional message and one or more buttons like as shown above and we don't have any chance to customize the style of alert.



We can use Alerts in our iOS applications by adding UIAlertView class reference.



Now we will see how to use iOS UI Alerts in our iOS applications with example.

Create iOS Alerts App in Swift

To create new project in iOS open Xcode from /Applications folder directory. Once we open Xcode the welcome window will open like as shown below. In welcome window click on the second option “Create a new Xcode Project” or choose File --> New --> Project



Xcode application to create ios project



After selecting “Create a new Xcode project” a new window will open in that we need to choose template.



The new Xcode window will contain several built-in app templates to implement common type of iOS apps like page based apps, tab-based apps, games, table-view apps, etc. These templates are having pre-configured interface and source code files.



For this iOS Alerts example, we will use most basic template “Single View Application”. To select this one, Go to the iOS section in left side --> select Application --> In main area of dialog select “Single View Application” and then click on next button like as shown below.



Select single view application from ios xcode templates

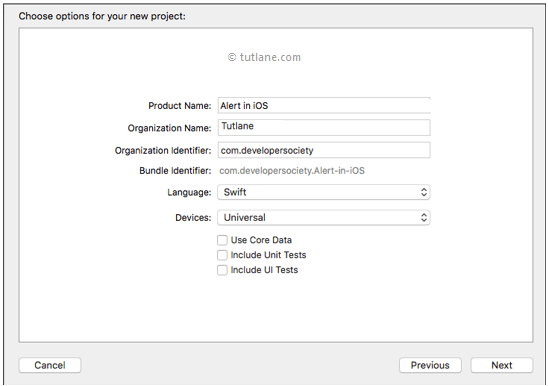

After click Next we will get window like as shown below, In this we need to mention project name and other details for our application.



Product Name: “Alert in iOS”



The name whatever we enter in Product Name section will be used for the project and app.



Organization Name: “Tutlane”



You can enter the name of your organization or your own name or you can leave it as blank.



Organization Identifier: “com.developersociety”



Enter your organization identifier in case if you don't have any organization identifier enter com.example.



Bundle Identifier: This value will generate automatically based on the values we entered in Product Name and Organization Identifier.



Language: “Swift”



Select language type as “Swift” because we are going to develop applications using swift.



Devices: “Universal”



Choose Devices options as Universal it mean that one application is for all apple devices in case if  you have any specific requirement to run app only for iPad then you can choose the iPad option to make your application restricted to run only on iPad devices.



Use Core Data: Unselected



This option is used for database operations. In case if you have any database related operations in your application select this option otherwise unselect the option.



Include Unit Tests: Unselected



In case if you need unit tests for your application then select this option otherwise unselect it.



Include UI Tests: Unselected



In case if you need UI tests for your application then select this option otherwise unselect it.



Once you finished entering all the options then click on Next button like as shown below.



ios create ui alerts app in swift using xcode



Once we click on Next button new dialog will open in that we need to select the location to save our project. Once you select the location to save project then click on Create button like as shown below



Give path to save new ios application in xcode



After click on Create button the Xcode will create and open a new project. In our project Main.storyboard and ViewController.swift are the main files which we used to design app user interface and to maintain source code.



Main.storyboard - Its visual interface editor and we will use this file to design our app user interface



ViewController.swift - It contains source code of our application and we use this file to write any code related to our app.

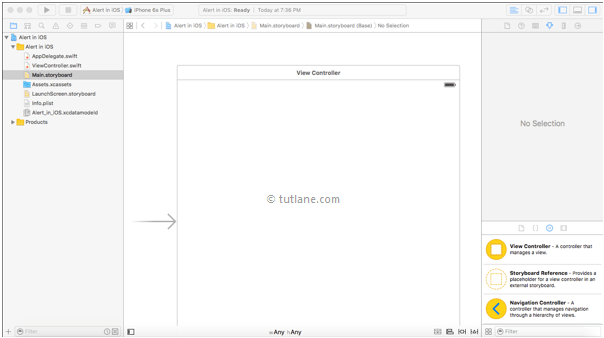

Now in project select Main.storyboard file the Xcode will open visual interface editor like as shown below.



ios ui alert example storyboard file in xcode

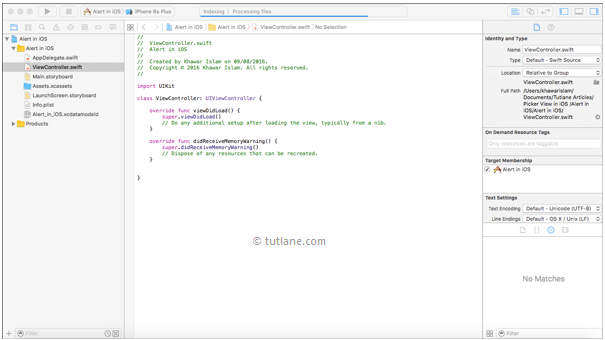

Now select ViewController.swift file in your project that view will be like as shown below.



ios ui alerts viewcontroller file in swift app

Add iOS UI Controls to View in Swift

Now we will add controls to our application for that open Object Library. The Object Library will appear at the bottom of Xcode in right side. In case if you don't find Object library, click on the button which is at the third position from the left in the library selector bar like as shown below. (Alternatively you can choose View --> Utilities --> Show Object Library.)



Object Library in Xcode Application to Search for UI Controls



As we discussed our user interface will be in Main.storyboard file so open Main.storyboard file. Now in Object library search for the button in Filter field then drag and drop the button into Main.storyboard ViewController like as shown below.



ios alerts add controls to viewcontroller in storyboard file

Connect iOS UI Controls to Code in Swift

Now we will make connection between controls and ViewController.Swift code for that click on assistant button (overlap circle) in Xcode toolbar right side corner like as shown below.



Assistant Editor in iOS Xcode to Mapp Controls with Code

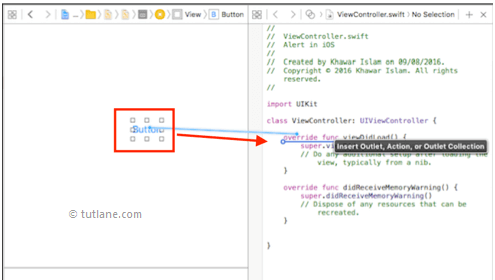

To map the controls, press Ctrl button in keyboard and drag the button from canvas interface and drop into ViewController.swift file like as shown below.



ios alerts map controls to viewcontroller.swift file in xcode



After completion of button mapping write the following code in button Action in ViewController.swift file.



@IBAction func buttonalert(sender: AnyObject) {

let alert = UIAlertController(title: "Tutlane Alert", message: "My Alert for Tutlane", preferredStyle: UIAlertControllerStyle.Alert)

alert.addAction(UIAlertAction(title: "Ok", style: UIAlertActionStyle.Default, handler: nil))

alert.addAction(UIAlertAction(title: "Cancel", style: UIAlertActionStyle.Default, handler: {(action:UIAlertAction!) inprint("you have pressed the Cancel button")

}))

self.presentViewController(alert, animated: true, completion: nil)

}

Once we finished writing all the required functionality in ViewController.swift file our code will be like as shown below



//  ViewController.swift

//  Alert in iOS

//  Created by Tutlane on 09/08/2016.

//  Copyright © 2016 Tutlane. All rights reserved.



import UIKit

class ViewController: UIViewController {

@IBOutlet weak var alert: UIButton!

@IBAction func buttonalert(sender: AnyObject) {

let alert = UIAlertController(title: "Tutlane Alert", message: "My Alert for Tutlane", preferredStyle: UIAlertControllerStyle.Alert)

alert.addAction(UIAlertAction(title: "Ok", style: UIAlertActionStyle.Default, handler: nil))

alert.addAction(UIAlertAction(title: "Cancel", style: UIAlertActionStyle.Default, handler: {(action:UIAlertAction!) inprint("you have pressed the Cancel button")

}))

self.presentViewController(alert, animated: true, completion: nil)

}

override func viewDidLoad() {

super.viewDidLoad()

// Do any additional setup after loading the view, typically from a nib.

}

override func didReceiveMemoryWarning() {

super.didReceiveMemoryWarning()

// Dispose of any resources that can be recreated.

}

}

Now we will run and check the output of application. To run application, select the required simulator (Here we selected iPhone 6s Plus) and click on Play button, located at the top-left corner of the Xcode toolbar like as shown below.



Run ios alerts app using simulator in xcode

Output of iOS Alerts App in Swift

Following is the result of iOS Alerts application. If you observe by default it is showing button once we click on button it will show alert message like as shown below.



ios alerts swift app example result or output



This is how we can use iOS UI Alerts in swift app to alert or show the important information to the user regarding the action he is performing in app.
